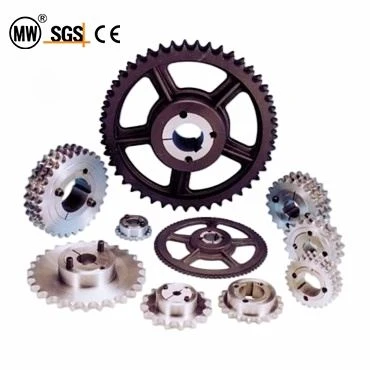

Sproket BTL merupakan salah satu jenis sproket. Roda rantai merupakan komponen transmisi mekanis yang digunakan bersama dengan rantai. Beberapa karakteristik sproket BTL antara lain:
Beberapa seri produk: seri seperti 06B/08B/10B/12B/16A/20A, dll.
Beberapa spesifikasi: seperti 35/40/41/50/60/80/100/120/140/160 dengan jumlah gigi berbeda. Diameter pemrosesan lebih besar: Diameter pemrosesan maksimum dapat mencapai 1450mm. Selongsong kerucut khusus dapat digunakan: misalnya, beberapa sproket BTL dapat dilengkapi dengan selongsong kerucut maksimum 8065.
Parameter produk spesifik dan karakteristik sproket BTL dapat bervariasi tergantung pada pabrikan dan model spesifik. Dalam penerapan praktisnya, pelanggan perlu mempertimbangkan faktor-faktor berikut ketika memilih sprocket BTL:
Persyaratan rasio transmisi: Tentukan rasio gigi sproket yang sesuai berdasarkan kebutuhan kerja peralatan; Situasi beban: termasuk ukuran dan jenis beban (seperti beban konstan atau beban benturan), dll., untuk memilih sproket dengan kekuatan yang cukup;Spesifikasi rantai: Pastikan sproket cocok dengan rantai yang digunakan untuk memastikan kinerja penyambungan dan transmisi yang baik;Lingkungan kerja: Kondisi seperti suhu, kelembapan, debu, dll. dapat memengaruhi pemilihan material dan persyaratan perlindungan sproket.
Parameter
Sproket BTL
Rangkaian produk
| Standar | Tipe Seri | Rentang Ukuran |
| KERIUHAN | 06B,Pitch9.525mm | tunggal/ganda/tiga kali lipat,17-114 |
| 06C Pitch9.525mm | tunggal/ganda/tiga kali lipat,17-114 | |
| 08A,Pitch12.70mm | tunggal/ganda/tiga kali lipat,15-114 | |
| 08B,Pitch12.70mm | tunggal/ganda/tiga kali lipat,15-114 | |
| 10A,Pitch15.875mm | tunggal/ganda/tiga kali lipat,13-114 | |
| 10B,Pitch15.875mm | tunggal/ganda/tiga kali lipat,13-114 | |
| 12A,Pitch19.05mm | tunggal/ganda/tiga kali lipat,13-114 | |
| 12B,Pitch19.05mm | tunggal/ganda/tiga kali lipat,13-114 | |
| 16A,Pitch25.40mm | tunggal/ganda/tiga kali lipat,13-114 | |
| 16B,Pitch25.40mm | tunggal/ganda/tiga kali lipat,13-114 | |
| 20A,Pitch31.75mm | lajang, 13-76 | |
| 20B,Pitch31.75mm | lajang, 13-76 | |
| ANSI | 35-1 Untuk Lapangan 3/8". | TB35B1-18H hingga TB35B1-112 |
| 35-2 Untuk Lapangan 3/8". | TB35B2-19H hingga TB35B2-112 | |
| 40-1 Untuk 1/2"Pitch | TB40B1-14H hingga TB40B1-112 | |
| 40-2 Untuk 1/2"Pitch | TB40B2-15H hingga TB40B2-102 | |
| 41-1 Untuk 1/2"Pitch | TB41B1-14 hingga TB41B1-96 | |
| 50-1 Untuk 1/2"Pitch | TB50B1-12H hingga TB50B1-112 | |
| 50-2 Untuk Lapangan 5/8". | TB50B2-14H hingga TB50C2-102 | |
| 60-1 Untuk Lapangan 3/4". | TB60B1-11H hingga TB60B1-84 | |
| 60-2 Untuk Lapangan 3/4". | TB60B2-13H hingga TB60C2-95 | |
| 80-1 Untuk 1"Pitch | TB80B1-10H hingga TB80B1-80 | |
| 80-2 Untuk 1"Pitch | TB80B2-13H hingga TB80C2-95 | |
| 100-1 Untuk 11/4"Lapangan | TB100B-11H hingga TB100B1-60 | |
| 120-1 Untuk 11/2" Lapangan | TB120B1-12H hingga TB120C1-80 | |
| 140-1 Untuk 13/4"Lapangan | TB140B1-12H hingga TB140C1-70 | |
| 160-1 Untuk 2"Pitch | TB160B1-11H hingga TB160C1-60 |

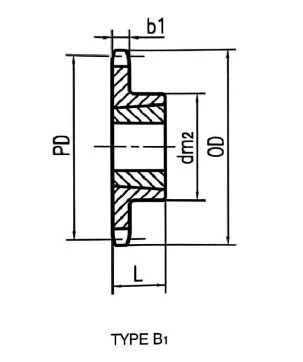

35-1 Untuk Rantai ANSI Pitch 3/8''
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | |||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | |||||
| 18 19 20 21 22 |
TB35B1-18H TB35B1-19H TB35B1-20H TB35B1-21H TB35B1-22H |
1008 1008 1008 1008 1210 |
2.352 2.472 2.593 2.713 2.833 |
2.159 2.278 2.397 2.516 2.635 |
1 1 1 1 1 1/4 |
7/8 7/8 7/8 7/8 1 |
17/8 113/16 115/16 21/16 23/8 |
B1 B1 B1 B1 B1 |
0.40 0.50 0.60 0.70 0.80 |
0.30 0.30 0.30 0.30 0.60 |
| 23 24 25 26 28 |
TB35B1-23H TB35B1-24 jam TB35B1-25H TB35B1-26H TB35B1-28H |
1210 1210 1210 1610 1610 |
2.954 3.074 3.194 3.314 3.553 |
2.754 2.873 2.992 3.111 3.349 |
11/4 11/4 11/4 15/8 15/8 |
1 1 1 1 1 |
27/16 27/16 27/16 27/8 27/8 |
B1 B1 B1 B1 B1 |
0.90 0.90 1.20 1.10 1.20 |
0.60 0.60 0.60 0.90 0.90 |
| 30 32 35 36 40 |
TB35B1-30H TB35B1-32H TB35B1-35H TB35B1-36H TB35B1-40H |
1610 1610 1610 1610 1610 |
3.793 4.032 4.392 4.511 4.990 |
3.588 3.826 4.183 4.303 4.786 |
15/8 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
31/8 31/4 31/4 31/4 31/4 |
B1 B1 B1 B1 B1 |
1.20 1.30 1.40 1.40 1.90 |
0.90 0.90 0.90 0.90 0.90 |
| 42 45 48 54 60 |
TB35B1-42H TB35B1-45H TB35B1-48H TB35B1-54H TB35B1-60H |
1610 1610 1610 1610 1610 |
5.229 5.588 5.946 6.663 7.380 |
5.018 5.376 5.734 6.449 7.165 |
15/8 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
31/4 31/4 31/4 31/4 31/4 |
B1 B1 B1 B1 B1 |
2.00 2.10 2.30 2.60 3.00 |
0.90 0.90 0.90 0.90 0.90 |
| 70 72 80 84 96 |
TB35B1-70 TB35B1-72 TB35B1-80 TB35B1-84 TB35B1-96 |
1610 1610 1610 1610 1610 |
8.575 8.814 9.770 10.247 11.680 |
8.358 8.597 9.552 10.029 11.461 |
15/8 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
31/4 31/4 31/4 31/4 31/4 |
B1 B1 B1 B1 B1 |
3.70 3.90 4.50 4.90 6.00 |
0.90 0.90 0.90 0.90 0.90 |
| 112 | TB35B1-112 | 1610 | 13.590 | 13.371 | 15/8 | 1 | 31/4 | B1 | 7.80 | 0.90 |

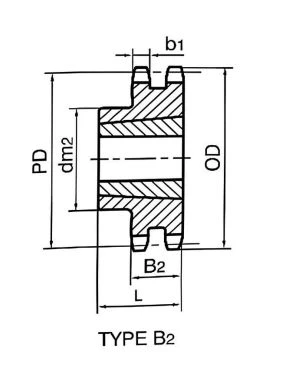

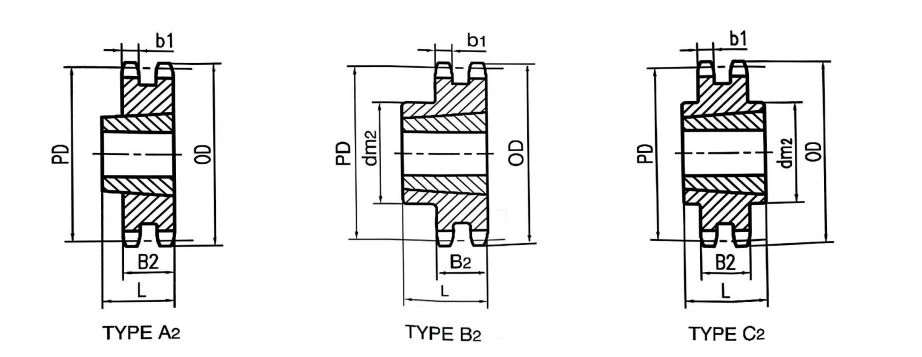

35-2 Untuk Rantai ANSI Pitch 3/8''
| Gigi | Nomor Katalog. | nomor busing. | Diameter | Max Bore | Diameter | Jenis | Berat (aplikasi) | |||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | |||||
| 19 20 21 22 24 |
TB35B2-19H TB35B2-20H TB35B2-21H TB35B2-22H TB35B2-24 jam |
1008 1008 1008 1008 1210 |
2.472 2.593 2.713 2.833 3.074 |
2.278 2.397 2.516 2.635 2.873 |
1 1 1 1 11/4 |
7/8 7/8 7/8 7/8 1 |
153/64 115/16 21/16 23/16 27/16 |
B2 B2 B2 B2 B2 |
0.60 0.80 1.40 1.70 1.80 |
0.30 0.30 0.30 0.30 0.60 |
| 26 30 32 35 40 |
TB35B2-26H TB35B2-30H TB35B2-32H TB35B2-35H TB35B2-40H |
1210 1610 1610 1610 1610 |
3.314 3.793 4.032 4.392 4.990 |
3.111 3.588 3.826 4.183 4.780 |
1 1/4 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
25/8 31/8 31/4 31/4 31/4 |
B2 B2 B2 B2 B2 |
2.00 1.80 2.00 2.30 2.90 |
0.60 0.90 0.90 0.90 0.90 |
| 45 48 54 60 70 |
TB35B2-45H TB35B2-48H TB35B2-54H TB35B2-60H TB35B2-70 |
1610 1610 1610 1610 1610 |
5.588 5.946 6.663 7.380 8.575 |
5.376 5.734 6.449 7.165 8.358 |
15/8 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
31/4 35/8 35/8 35/8 35/8 |
B2 B2 B2 B2 B2 |
3.20 3.50 3.90 4.90 6.30 |
0.90 0.90 0.90 0.90 0.90 |
| 80 96 112 |
TB35B2-80 TB35B2-96 TB35B2-112 |
1610 1610 1610 |
9.770 11.680 13.590 |
9.552 11.461 13.371 |
15/8 15/8 15/8 |
1 1 1 |
35/8 35/8 35/8 |
B2 B2 B2 |
7.90 9.90 10.90 |
0.90 0.90 0.90 |
Rentang Bor
| Busing | Rentang Bor |
| 1008 | 1/2-1" |
| 1210 | 1/2-11/4 |
| 1610 | 1/2-15/8 |
Kursi Tombol Standar
| Rentang Bor | kursi kunci | Rentang Bor | kursi kunci |
| 1/2-9/16 | 1/8x1/16 | 15/16-13/8 | 5/16x5/32 |
| 5/8-7/8 | 3/16x3/32 | 17/16-13/4 | 3/8x3/16 |
| 15/16-11/4 | 1/4x1/8 |

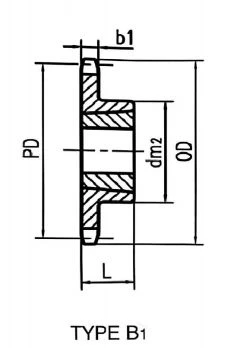

40-1 Untuk Rantai ANSI Pitch 1/2 ''
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | |||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | |||||
| 14 15 16 17 18 |
TB40B1-14H TB40B1-15H TB40B1-16H TB40B1-17H TB40B1-18H |
1008 1008 1008 1210 1210 |
2.491 2.652 2.814 2.975 3.135 |
2.247 2.405 2.563 2.721 2.879 |
1 1 1 11/4 11/4 |
7/8 7/8 7/8 1 1 |
113/16 113/16 115/16 23/8 215/32 |
B1 B1 B1 B1 B1 |
0.30 0.40 0.50 0.50 0.60 |
0.30 0.30 0.30 0.60 0.60 |
| 19 20 21 22 23 |
TB40B1-19H TB40B1-20H TB40B1-21H TB40B1-22H TB40B1-23H |
1210 1610 1610 1610 1610 |
3.296 3.457 3.617 3.778 3.938 |
3.038 3.196 3.355 3.513 3.672 |
11/4 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
215/32 225/32 225/32 225/32 3 |
B1 B1 B1 B1 B1 |
0.70 0.70 0.80 0.90 1.00 |
0.60 0.90 0.90 0.90 0.90 |
| 24 25 26 28 30 |
TB40B1-24 jam TB40B1-25 jam TB40B1-26H TB40B1-28H TB40B1-30H |
1610 1610 1610 1610 1610 |
4.098 4.258 4.418 4.738 5.057 |
3.831 3.989 4.148 4.466 4.783 |
15/8 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
31/4 31/4 31/4 3 3 |
B1 B1 B1 B1 B1 |
1.40 1.50 1.70 1.80 1.90 |
0.90 0.90 0.90 0.90 0.90 |
| 32 35 36 40 42 |
TB40B1-32H TB40B1-35H TB40B1-36H TB40B1-40H TB40B1-42H |
1610 1610 1610 1610 1610 |
5.377 5.855 6.015 6.653 6.972 |
5.101 5.578 5.737 6.373 6.691 |
15/8 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
3 3 3 3 3 |
B1 B1 B1 B1 B1 |
1.90 2.30 2.40 2.80 2.90 |
0.90 0.90 0.90 0.90 0.90 |
| 45 48 54 60 70 |
TB40B1-45H TB40B1-48H TB40B1-54 TB40B1-60 TB40B1-70 |
1610 1610 1610 1610 2012 |
7.451 7.928 8.885 9.841 11.434 |
7.168 7.645 8.599 9.554 11.145 |
15/8 15/8 15/8 15/8 2 |
1 1 1 1 11/4 |
3 3 3 3 39/16 |
B1 B1 B1 B1 B1 |
3.50 4.00 4.90 6.00 8.20 |
0.90 0.90 0.90 0.90 1.70 |
| 72 80 84 96 112 |
TB40B1-72 TB40B1-80 TB40B1-84 TB40B1-96 TB40B1-112 |
2012 2012 2012 2012 2517 |
11.752 13.026 13.663 15.573 18.122 |
11.463 12.736 13.372 15.282 17.828 |
2 2 2 2 21/2 |
11/4 11/4 11/4 11/4 13/4 |
39/16 39/16 39/16 39/16 41/4 |
B1 B1 B1 B1 B1 |
9.00 10.80 11.30 14.60 20.50 |
1.70 1.70 1.70 1.70 1.701 |

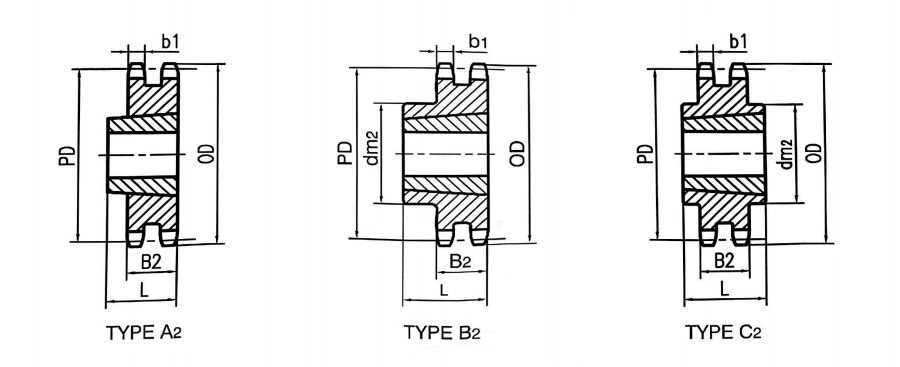

40-2 Untuk Rantai ANSI Pitch 1/2 ''
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | ||||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | ||||||
| 15 16 17 18 19 |
TB40B2-15H TB40B2-16H TB40B2-17H TB40B2-18H TB40B2-19H |
1008 1008 1008 1210 1210 |
2.652 2.814 2.975 3.135 3.296 |
2.405 2.563 2.721 2.879 3.038 |
1 1 1 11/4 11/4 |
7/8 7/8 7/8 1 1 |
- - - 25/16 21/2 |
A2 A2 A2 B2 B2 |
0.50 0.60 0.70 0.70 0.90 |
0.30 0.30 0.30 0.60 0.60 |
|
| 20 21 23 25 30 |
TB40B2 -20H TB40B2-21H TB40B2 23H TB40B2-25H TB40B2-30H |
1610 1610 1610 2012 2012 |
3.457 3.617 3.938 4.258 5.057 |
3.196 3.355 3.672 3.989 4.783 |
15/8 15/8 15/8 2 2 |
1 1 1 11/4 11/4 |
25/8 23/4 3 313/32 415/64 |
B2 B2 B2 B2 B2 |
0.90 1.00 1.30 1.60 3.40 |
0.90 0.90 0.90 1.70 1.70 |
|
| 36 42 48 52 60 |
TB40B2-36H TB40C2-42H TB40C2-48H TB40C2-52 TB4002-60 |
2012 2517 2517 2517 2517 |
6.015 6.972 7.928 8.566 9.841 |
5.737 6.691 7.645 8.281 9.554 |
2 21/2 21/2 21/2 21/2 |
11/4 13/4 13/4 13/4 13/4 |
55/32 41/4 41/4 41/4 41/4 |
B2 C2 C2 C2 C2 |
5.90 7.00 9.60 11.40 15.40 |
1.70 3.50 3.50 3.50 3.50 |
|
| 68 76 84 95 102 |
TB40C2-68 TB40C2-76 TB40C2-84 TB40C2-95 TB40C2-102 |
2517 2517 2517 2517 2517 |
11.115 12.389 13.663 15.414 16.529 |
10.826 12.099 13.372 15.122 16.236 |
21/2 21/2 21/2 21/2 21/2 |
13/4 13/4 13/4 13/4 13/4 |
41/4 41/4 41/4 41/4 41/4 |
C2 C2 C2 C2 C2 |
20.50 25.70 31.60 34.10 36.80 |
3.50 3.50 3.50 3.50 3.50 |
|
Rentang Bor
| Busing | Rentang Bor |
| 1008 | 1/2-1" |
| 1210 1215 | 1/2-11/4 |
| 1610 | 1/2-15/8 |
| 2012 | 1/2-2" |
| 2517 | 1/2-21/2 |
Kursi Kunci Standar
| Rentang Bor | kursi kunci | Rentang Bor | kursi kunci |
| 1/2-9/16 | 1/8x1/16 | 17/16-13/4 | 3/8x3/16 |
| 5/8-7/8 | 3/16x3/32 | 113/16-21/4 | 1/2x1/4 |
| 15/16-11/4 | 1/4x1/8 | 25/16-23/4 | 5/8x5/16 |
| 15/16-13/8 | 5/16x5/32 |

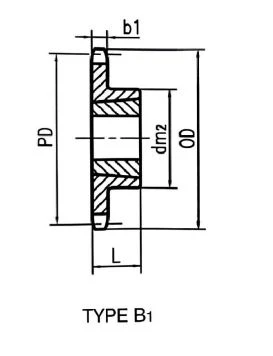

41-1 Untuk Rantai ANSI Pitch 1/2 ''
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | |||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | |||||
| 14 15 16 17 18 |
TB41B1-14 TB41B1-15 TB41B1-16 TB41B1-17 TB41B1-18 |
1008 1008 1008 1210 1210 |
2.49 2.65 2.81 2.98 3.14 |
2.249 2.405 2.503 2.721 2.879 |
1 1 1 11/4 11/4 |
7/8 7/8 7/8 1 1 |
17/8 17/8 2 23/8 23/8 |
B1 B1 B1 B1 B1 |
0.4 0.5 0.6 0.7 0.9 |
0.3 0.3 0.3 0.6 0.6 |
| 19 20 21 22 23 |
TB41B1-19 TB41B1-20 TB41B1-21 TB41B1-22 TB41B1-23 |
1210 1610 1610 1610 1610 |
3.30 3.46 3.62 3.78 3.94 |
3.038 3.196 3.355 3.573 3.672 |
11/4 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
21/2 27/8 3 3 3 |
B1 B1 B1 B1 B1 |
1.1 1.1 1.2 1.3 1.4 |
0.6 0.9 0.9 0.9 0.9 |
| 24 25 26 28 30 |
TB41B1-24 TB41B1-25 TB41B1-26 TB41B1-28 TB41B1-30 |
1610 1610 1610 1610 1610 |
4.10 4.26 4.42 4.74 5.06 |
3.831 3.989 4.148 4.466 4.783 |
15/8 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
31/4 31/4 31/4 31/4 31/4 |
B1 B1 B1 B1 B1 |
1.4 1.5 1.5 1.7 1.8 |
0.9 0.9 0.9 0.9 0.9 |
| 32 35 36 40 45 |
TB41B1-32 TB41B1-35 TB41B1-36 TB41B1-40 TB41B1-45 |
1610 1610 1610 1610 1610 |
5.38 5.86 6.02 6.65 7.45 |
5.101 5.578 5.737 6.373 7.168 |
15/8 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
1/4 31/4 31/4 31/4 31/4 |
B1 B1 B1 B1 B1 |
1.9 2.3 2.4 2.7 3.5 |
0.9 0.9 0.9 0.9 0.9 |
| 48 54 60 70 72 |
TB41B1-48 TB41B1-54 TB41B1-60 TB41B1-70 TB41B1-72 |
1610 1610 1610 1610 1610 |
7.93 8.89 9.84 11.43 11.75 |
7.645 8.599 9.554 11.145 11.463 |
15/8 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
31/4 31/4 31/4 31/4 31/4 |
B1 B1 B1 B1 B1 |
4.1 4.9 5.7 7.4 8.2 |
0.9 0.9 0.9 0.9 0.9 |
| 80 96 |
TB41B1-80 TB41B1-96 |
1610 1610 |
13.03 15.57 |
12.736 15.281 |
15/8 15/8 |
1 1 |
31/4 31/4 |
B1 B1 |
9.6 13.1 |
0.9 0.9 |

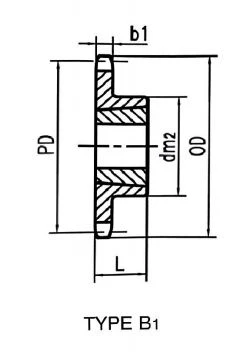

50-1 Untuk Rantai ANSI Pitch 1/2 ''
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | |||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | |||||
| 12 13 14 15 16 |
TB50B1-12H TB50B1-13H TB50B1-14H TB50B1-15H TB50B1-16H |
1008 1008 1008 1210 1610 |
2.708 2.911 3.113 3.315 3.517 |
2.415 2.612 2.809 3.006 3.204 |
1 1 1 11/4 15/8 |
7/8 7/8 7/8 1 |
115/16 113/16 115/16 215/32 225/32 |
B1 B1 B1 B1 B1 |
0.50 0.50 0.60 0.70 0.70 |
0.30 0.30 0.30 0.60 0.90 |
| 17 18 19 20 21 |
TB50B1-17H TB50B1-18H TB50B1-19H TB50B1-20H TB50B1-21H |
1610 1610 1610 1610 1610 |
3.719 3.920 4.120 4.321 4.522 |
3.401 3.599 3.797 3.995 4.193 |
15/8 15/8 15/8 15/8 15/8 |
1 1 1 1 1 |
225/32 225/32 3 31/4 3 |
B1 B1 B1 B1 B1 |
0.80 0.90 1.30 1.60 1.50 |
0.9 0.9 0.9 0.9 0.9 |
| 22 23 24 25 26 |
TB50B1-22H TB50B1-23H TB50B1-24 jam TB50B1-25 jam TB50B1-26H |
1610 2012 2012 2012 2012 |
4.722 4.922 5.122 5.322 5.522 |
4.392 4.590 4.788 4.987 5.185 |
15/8 2 2 2 2 |
1 11/4 11/4 11/4 11/4 |
3 39/16 39/16 39/16 39/16 |
B1 B1 B1 B1 B1 |
1.60 2.00 2.20 2.40 2.50 |
0.90 1.70 1.70 1.70 1.70 |
| 27 28 30 32 35 |
TB50B1-27H TB50B1-28 jam TB50B1-30H TB50B1-32H TB50B1-35H |
2012 2012 2012 2012 2012 |
5.723 5.922 6.321 6.721 7.319 |
5.384 5.582 5.979 6.376 6.972 |
2 2 2 2 2 |
11/4 11/4 11/4 11/4 11/4 |
39/16 39/16 39/16 39/16 39/16 |
B1 B1 B1 B1 B1 |
2.60 2.80 3.20 3.60 4.20 |
1.70 1.70 1.70 1.70 1.70 |
| 36 40 42 45 48 |
TB50B1-36H TB50B1-40H TB50B1-42 TB50B1-45 TB50B1-48 |
2012 2012 2012 2012 2012 |
7.519 8.316 8.715 9.313 9.911 |
7.171 7.966 8.363 8.960 9.556 |
2 2 2 2 2 |
11/4 11/4 11/4 11/4 11/4 |
39/16 39/16 39/16 39/16 39/16 |
B1 B1 B1 B1 B1 |
4.30 5.20 5.90 6.50 7.30 |
1.70 1.70 1.70 1.70 1.70 |
| 54 60 70 72 80 |
TB50B1-54 TB50B1-60 TB50B1-70 TB50B1-72 TB50B1-80 |
2012 2012 2517 2517 2517 |
11.106 12.301 14.292 14.690 16.282 |
10.749 11.942 13.931 14.329 15.920 |
2 2 21/2 21/2 21/2 |
11/4 11/4 13/4 13/4 13/4 |
39/16 39/16 41/4 41/4 41/4 |
B1 B1 B1 B1 B1 |
9.00 10.80 14.00 15.50 19.50 |
1.70 1.70 3.50 3.50 3.50 |
| 84 96 112 |
TB50B1-84 TB50B1-96 TB50B1-112 |
2517 2517 2517 |
17.079 19.466 22.651 |
16.715 19.102 22.285 |
21/2 21/2 21/2 |
13/4 13/4 13/4 |
41/4 41/4 41/4 |
B1 B1 B1 |
22.50 29.00 38.70 |
3.50 3.50 3.50 |
50-2 Untuk Rantai ANSI Pitch 5/8''
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | |||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | |||||
| 14 15 16 17 18 |
TB50B2-14H TB50B2-15H TB50B2-16H TB50B2-17H TB50B2-18H |
1008 1210 1210 1610 1610 |
3.113 3.315 3.517 3.719 3.920 |
2.809 3.006 3.204 3.410 3.599 |
1 11/4 11/4 15/8 15/8 |
7/8 1 1 1 1 |
- - - - - |
A2 A2 A2 A2 A2 |
0.80 0.90 1.10 1.10 1.30 |
0.30 0.60 0.60 0.60 0.90 |
| 19 20 21 25 30 |
TB50B2-19H TB50B2-20H TB50B2-21H TB50B2-25 jam TB50B2-30H |
1610 2012 2012 2012 2517 |
4.120 4.321 4.522 5.322 6.321 |
3.797 3.995 4.193 4.987 5.979 |
15/8 2 2 2 21/2 |
1 11/4 11/4 11/4 13/4 |
- 31/4 31/2 49/32 59/32 |
A2 B2 B2 B2 B2 |
1.60 1.50 1.90 3.80 7.50 |
0.90 1.70 1.70 1.70 3.50 |
| 36 42 48 52 60 |
TB50C2-36H TB50C2-42 TB50C2-48 TB50C2-52 TB50C2-60 |
2517 2517 2517 2517 2517 |
7.519 8.715 9.911 10.707 12.301 |
7.171 8.363 9.556 10.351 11.942 |
21/2 21/2 21/2 21/2 21/2 |
13/4 13/4 13/4 13/4 13/4 |
41/4 41/4 41/4 43/8 43/8 |
C2 C2 C2 C2 C2 |
9.40 13.40 18.60 22.20 30.30 |
3.50 3.50 3.50 3.50 3.50 |
| 68 76 84 95 102 |
TB50C2-68 TB50C2-76 TB50C2-84 TB50C2-95 TB50C2-102 |
2517 2517 2517 2517 2517 |
13.893 15.486 17.079 19.267 20.661 |
13.533 15.124 16.715 18.903 20.295 |
21/2 21/2 21/2 21/2 21/2 |
13/4 13/4 13/4 13/4 13/4 |
43/8 43/8 43/8 43/8 43/8 |
C2 C2 C2 C2 C2 |
39.40 41.20 45.30 58.80 67.10 |
3.50 3.50 3.50 3.50 3.50 |
Rentang Bor
| Busing | Rentang Bor |
| 1008 | 1/2-1" |
| 1210 1215 | 1/2-11/4 |
| 1610 | 1/2-15/8 |
| 2012 | 1/2-2" |
| 2517 | 1/2-21/2 |
Kursi Kunci Standar
| Rentang Bor | kursi kunci | Rentang Bor | kursi kunci |
| 1/2-9/16 | 1/8x1/16 | 17/16-13/4 | 3/8x3/16 |
| 5/8-7/8 | 3/16x3/32 | 113/16-21/4 | 1/2x1/4 |
| 15/16-11/4 | 1/4x1/8 | 25/16-23/4 | 5/8x5/16 |
| 1 5/16-1 3/8 | 5/16x5/32 |

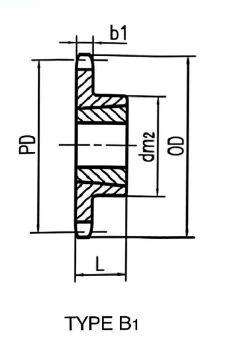

60-1 Untuk Rantai ANSI Pitch 3/4''
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | |||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | |||||
| 11 12 13 14 15 |
TB60B1-11H TB60B1-12H TB60B1-13H TB60B1-14H TB60B1-15H |
1008 1008 1210 1210 1610 |
3.004 3.249 3.493 3.736 3.979 |
2.662 2.898 3.134 3.371 3.607 |
1 1 11/4 11/4 15/8 |
7/8 7/8 1 1 1 |
113/16 115/16 215/32 215/32 225/32 |
B1 B1 B1 B1 B1 |
0.60 0.80 0.80 1.00 1.00 |
0.30 0.30 0.60 0.60 0.90 |
| 16 17 18 19 20 |
TB60B1-16H TB60B1-17H TB60B1-18H TB60B1-19H TB60B1-20H |
1610 1610 1610 1610 2012 |
4.221 4.462 4.704 4.945 5.185 |
3.844 4.082 4.319 4.557 4.794 |
15/8 15/8 15/8 15/8 2 |
1 1 1 1 11/4 |
3 31/4 31/4 31/4 39/16 |
B1 B1 B1 B1 B1 |
1.40 1.80 1.90 2.20 2.20 |
0.90 0.90 0.90 0.90 1.70 |
| 21 22 23 24 25 |
TB60B1-21H TB60B1-22H TB60B1-23H TB60B1-24 jam TB60B1-25 jam |
2012 2012 2012 2012 2012 |
5.426 5.666 5.907 6.147 6.387 |
5.032 5.270 5.508 5.746 5.984 |
2 2 2 2 2 |
11/4 11/4 11/4 11/4 11/4 |
39/16 39/16 39/16 39/16 39/16 |
B1 B1 B1 B1 B1 |
2.50 2.80 3.10 3.40 3.70 |
1.70 1.70 1.70 1.70 1.70 |
| 26 27 28 30 32 |
TB60B1-26H TB60B1-27H TB60B1-28H TB60B1-30H TB60B1-32H |
2012 2012 2012 2012 2012 |
6.627 6.867 7.107 7.586 8.065 |
6.222 6.416 6.699 7.175 7.652 |
2 2 2 2 2 |
11/4 11/4 11/4 11/4 11/4 |
39/16 39/16 39/16 39/16 39/16 |
B1 B1 B1 B1 B1 |
4.00 4.20 4.60 5.20 5.60 |
1.70 1.70 1.70 1.70 1.70 |
| 35 36 40 42 45 |
TB60B1-35H TB60B1-36H TB60B1-40 TB60B1-42 TB60B1-45 |
2012 2012 2012 2012 2012 |
8.783 9.022 9.980 10.458 11.175 |
8.367 8.605 9.559 10.036 10.752 |
2 2 2 2 2 |
11/4 11/4 11/4 11/4 11/4 |
39/16 39/16 39/16 39/16 39/16 |
B1 B1 B1 B1 B1 |
6.40 6.60 8.30 10.50 11.50 |
1.70 1.70 1.70 1.70 1.70 |
| 48 54 60 70 72 |
TB60B1-48 TB60B1-54 TB60B1-60 TB60B1-70 TB60B1-72 |
2012 2517 2517 2517 2517 |
11.893 13.327 14.761 17.150 17.628 |
11.467 12.899 14.330 16.717 17.194 |
2 21/2 21/2 21/2 21/2 |
11/4 13/4 13/4 13/4 13/4 |
39/16 41/4 41/4 41/4 41/4 |
B1 B1 B1 B1 B1 |
13.20 17.10 21.00 27.60 30.00 |
1.70 3.50 3.50 3.50 3.50 |
| 80 84 |
TB60B1-80 TB60B1-84 |
2517 2517 |
19.539 20.494 |
19.103 20.058 |
21/2 21/2 |
13/4 13/4 |
41/4 41/4 |
B1 B1 |
36.30 40.60 |
3.50 3.50 |

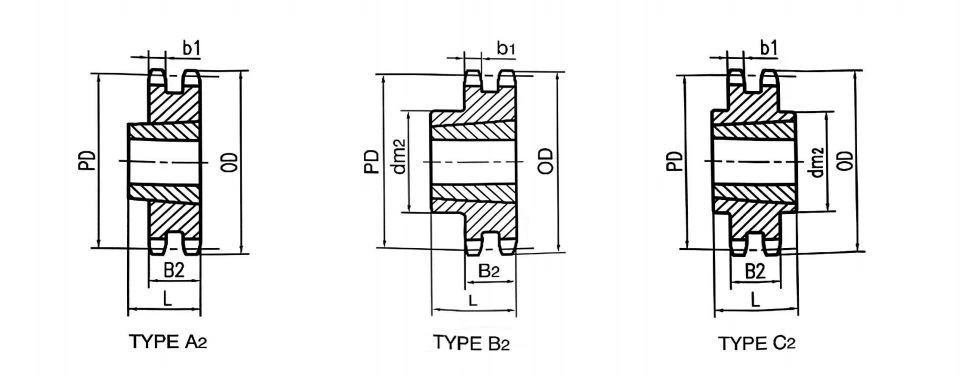

60-2 Untuk Rantai ANSI Pitch 3/4''
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | |||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | |||||
| 13 14 15 16 17 |
TB60B2-13H TB60B2-14H TB60B2-15H TB60B2-16H TB60B2-17H |
1215 1215 1615 1615 1615 |
3.493 3.736 3.979 4.221 4.462 |
3.134 3.371 3.607 3.844 4.082 |
11/4 11/4 15/8 15/8 15/8 |
11/2 11/2 11/2 11/2 11/2 |
21/4 21/2 213/16 3 31/4 |
B2 B2 B2 B2 B2 |
1.20 1.60 1.30 2.20 2.50 |
0.80 0.80 1.20 1.20 1.20 |
| 18 19 20 21 25 |
TB60B2-18H TB60B2-19H TB60B2-20H TB60B2-21H TB60B2-25H |
2012 2012 2517 2517 2517 |
4.704 4.945 5.185 5.426 6.387 |
4.319 4.557 4.794 5.032 5.984 |
2 2 21/2 21/2 21/2 |
11/4 11/4 13/4 13/4 13/4 |
- - 361/64 43/16 55/32 |
A2 A2 B2 B2 B2 |
3.00 3.50 4.00 5.00 7.50 |
1.70 1.70 3.50 3.50 3.50 |
| 30 36 42 45 52 |
TB60B2-30H TB60C2-36H TB60C2-42 TB60C2-45 TB60C2-52 |
2517 2517 2517 2517 2517 |
7.586 9.022 10.458 11.176 12.849 |
7.175 8.605 10.036 10.752 12.422 |
21/2 21/2 21/2 21/2 21/2 |
13/4 13/4 13/4 13/4 13/4 |
611/32 41/4 41/4 41/4 41/4 |
B2 C2 C2 C2 C2 |
13.50 17.50 25.50 29.50 41.00 |
3.50 3.50 3.50 3.50 3.50 |
| 60 68 76 95 |
TB60C2-60 TB60C2-68 TB60C2-76 TB60C2-95 |
2517 2517 3020 3020 |
14.761 16.672 18.583 23.121 |
14.330 16.240 18.149 22.684 |
21/2 21/2 3 3 |
13/4 13/4 2 2 |
41/4 41/2 51/4 51/4 |
C2 C2 C2 C2 |
32.50 36.50 42.50 48.50 |
3.50 3.50 6.50 6.50 |
Rentang Bor
| Busing | Rentang Bor |
| 1215 | 1/2-11/4 |
| 1615 | 1/2-15/8 |
| 2012 | 1/2-2" |
| 2517 | 1/2-21/2 |
| 3020 | 7/8-3" |
Kursi Kunci Standar
| Rentang Bor | kursi kunci | Rentang Bor | kursi kunci |
| 1/2-9/16 | 1/8x1/16 | 25/16-23/4 | 5/8x5/16 |
| 5/8-7/8 | 3/16x3/32 | 213/16-31/4 | 3/4x3/8 |
| 15/16-11/4 | 1/4x1/8 | ||
| 15/16-13/8 | 5/16x5/32 | ||
| 17/16-13/4 | 3/8x3/16 | ||
| 113/16-21/4 | 1/2x1/4 |
80-1 Untuk Rantai ANSI Pitch 1 ''
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | |||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | |||||
| 10 11 12 13 14 |
TB80B1-10H TB80B1-11H TB80B1-12H TB80B1-13H TB80B1-14H |
1215 1215 1615 1615 1615 |
3.678 4.006 4.332 4.657 4.982 |
3.236 3.549 3.864 4.179 4.494 |
11/4 11/4 15/8 15/8 15/8 |
11/2 11/2 11/2 11/2 11/2 |
23/8 215/32 3 3 31/4 |
B1 B1 B1 B1 B1 |
1.10 1.50 1.80 2.30 2.50 |
0.80 0.80 1.20 1.20 1.20 |
| 15 16 17 18 19 |
TB80B1-15H TB80B1-16H TB80B1-17H TB80B1-18H TB80B1-19H |
1615 2012 2012 2012 2012 |
5.305 5.627 5.950 6.271 6.593 |
4.810 5.126 5.442 5.759 6.076 |
15/8 2 2 2 2 |
11/2 11/4 11/4 11/4 11/4 |
31/4 39/16 39/16 39/16 39/16 |
B1 B1 B1 B1 B1 |
2.70 2.80 3.10 3.60 4.10 |
1.20 1.70 1.70 1.70 1.70 |
| 20 21 22 23 24 |
TB80B1-20H TB80B1-21H TB80B1-22H TB80B1-23H TB80B1-24 jam |
2517 2517 2517 2517 2517 |
6.914 7.235 7.555 7.875 8.196 |
6.392 6.710 7.027 7.344 7.661 |
21/2 21/2 21/2 21/2 21/2 |
13/4 13/4 13/4 13/4 13/4 |
41/4 41/4 41/4 41/4 41/4 |
B1 B1 B1 B1 B1 |
5.50 6.00 6.50 7.00 7.50 |
3.50 3.50 3.50 3.50 3.50 |
| 25 26 27 28 30 |
TB80B1-25 jam TB80B1-26H TB80B1-27H TB80B1-28H TB80B1-30H |
2517 2517 2517 2517 2517 |
8.516 8.836 9.156 9.475 10.114 |
7.979 8.296 8.614 8.931 9.567 |
21/2 21/2 21/2 21/2 21/2 |
13/4 13/4 13/4 13/4 13/4 |
41/4 41/4 41/4 41/4 41/4 |
B1 B1 B1 B1 B1 |
8.10 8.80 9.00 9.50 11.50 |
3.50 3.50 3.50 3.50 3.50 |
| 32 35 36 40 45 |
TB80B1-32H TB80B1-35H TB80B1-36H TB80B1-40 TB80B1-45 |
2517 2517 2517 2517 2517 |
10.753 11.711 12.030 13.306 14.901 |
10.202 11.156 11.474 12.746 14.336 |
21/2 21/2 21/2 21/2 21/2 |
13/4 13/4 13/4 13/4 13/4 |
41/4 41/4 41/4 41/4 41/4 |
B1 B1 B1 B1 B1 |
12.00 15.20 17.00 21.00 26.50 |
3.50 3.50 3.50 3.50 3.50 |
| 48 54 60 70 80 |
TB80B1-48 TB80B1-54 TB80B1-60 TB80B1-70 TB80B1-80 |
2517 2517 2517 3020 3020 |
15.857 17.769 19.681 22.867 26.052 |
15.290 17.198 19.107 22.289 25.471 |
21/2 21/2 21/2 3 3 |
13/4 13/4 13/4 2 2 |
41/4 41/4 41/4 51/4 51/4 |
B1 B1 B1 B1 B1 |
29.50 38.50 45.00 52.30 69.20 |
3.50 3.50 3.50 6.50 6.50 |
80-2 Untuk Rantai ANSI Pitch 1 ''
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | |||||||||
| OD | PD | L | dm2 | Hanya Pelek |
Hanya Semak |
|||||||||||
| 13 14 15 16 17 |
TB80B2-13H TB80B2-14H TB80B2-15H TB80B2-16H TB80B2-17H |
1615 2012 2012 2517 2517 |
4.657 4.982 5.305 5.627 5.950 |
4.179 4.494 4.810 5.126 5.442 |
15/8 2 2 21/2 21/2 |
11/2 11/4 11/4 13/4 13/4 |
- - - 31/8 31/8 |
A2 A2 A2 A2 A2 |
3.40 3.50 4.30 3.80 5.10 |
1.20 1.70 1.70 3.50 3.50 |
||||||
| 18 19 20 21 25 |
TB80B2-18H TB80B2-19H TB80B2-20H TB80B2-21H TB80B2-25 jam |
2517 3020 3020 3020 3020 |
6.271 6.593 6.914 7.235 8.516 |
5.759 6.076 6.392 6.710 7.979 |
21/2 3 3 3 3 |
13/4 2 2 2 2 |
31/8 5 51/4 59/16 67/ |
A2 B2 B2 B2 B2 |
6.40 6.60 7.10 8.90 16.50 |
3.50 6.50 6.50 6.50 6.50 |
||||||
| 30 36 42 45 52 |
TB80C2-30H TB80C2-36H TB80C2-42 TB80C2-45 TB80C2-52 |
3020 3020 3020 3020 3020 |
10.114 12.030 13.944 14.901 17.132 |
9.567 11.474 13.392 14.336 16.562 |
3 3 3 3 3 |
2 2 2 2 2 |
51/4 51/4 51/4 51/4 51/4 |
C2 C2 C2 C2 C2 |
25.10 39.40 41.40 56.20 66.30 |
6.50 6.50 6.50 6.50 6.50 |
||||||
| 60 68 76 95 |
TB80C2-60 TB80C2-68 TB80C2-76 TB80C2-95 |
3020 3020 3020 3020 |
19.681 22.230 24.778 30.828 |
19.107 21.653 24.198 30.245 |
3 3 3 3 |
2 2 2 2 |
51/4 51/4 51/4 51/4 |
C2 C2 C2 C2 |
72.00 89.10 112.00 125.00 |
6.50 6.50 6.50 6.50 |
||||||
Rentang Bor
| Busing | Rentang Bor | |||
| 1615 | 1/2-15/8 | |||
| 2012 | 1/2-2" | |||
| 2517 | 1/2-21/2 | |||
| 3020 | 7/8-3" | |||
Kursi Kunci Standar
| Rentang Bor | kursi kunci | Rentang Bor | kursi kunci | ||||
| 1/2-9/16 | 1/8x1/16 | 25/16-23/4 | 5/8x5/16 | ||||
| 5/8-7/8 | 3/16x3/32 | 213/16-31/4 | 3/4x3/8 | ||||
| 15/1-11/4 | 1/4x1/8 | ||||||
| 15/16-13/8 | 5/16x5/32 | ||||||
| 17/16-13/4 | 3/8x3/16 | ||||||
| 113/16-21/4 | 1/2x1/4 |
100-1 Untuk 1 1/4 ''Pitch Rantai ANSI
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | |||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | |||||
| 11 12 13 14 15 |
TB100B1-11H TB100B1-12H TB100B1-13H TB100B1-14H TB100B1-15H |
1615 1615 2012 2012 2517 |
5.007 5.415 5.821 6.227 6.631 |
4.437 4.830 5.223 5.617 6.012 |
15/8 15/8 2 2 21/2 |
11/2 11/2 11/4 11/4 13/4 |
3 31/4 39/16 39/16 41/4 |
B B B B B |
2.70 3.50 3.60 3.90 5.00 |
1.20 1.20 1.70 1.70 3.50 |
| 16 17 18 19 20 |
TB100B1-16H TB100B1-17H TB100B1-18H TB100B1-19H TB100B1-20H |
2517 2517 2517 2517 2517 |
7.034 7.437 7.839 8.241 8.642 |
6.407 6.803 7.198 7.594 7.991 |
21/2 21/2 21/2 21/2 21/2 |
13/4 13/4 13/4 13/4 13/4 |
41/2 41/2 41/2 41/2 41/2 |
B B B B B |
6.40 7.10 7.80 8.70 9.60 |
3.50 3.50 3.50 3.50 3.50 |
| 21 22 24 26 28 |
TB100B1-21H TB100B1-22H TB100B1-24 jam TB100B1-26 jam TB100B1-28 jam |
2517 2517 2517 2517 3020 |
9.043 9.444 10.245 11.045 11.844 |
8.387 8.783 9.577 10.370 11.164 |
21/2 21/2 21/2 21/2 3 |
13/4 13/4 13/4 13/4 2 |
41/2 41/2 41/2 41/2 51/4 |
B B B B B |
10.60 11.00 13.00 15.00 16.50 |
3.50 3.50 3.50 3.50 6.50 |
| 30 32 35 36 40 |
TB100B1-30H TB100B1-32 TB100B1-35 TB100B1-36 TB100B1-40 |
3020 3020 3020 3020 3020 |
12.643 13.442 14.639 15.038 16.633 |
11.958 12.753 13.945 14.342 15.932 |
3 3 3 3 3 |
2 2 2 2 2 |
51/4 51/4 51/4 51/4 51/4 |
B B B B B |
22.00 23.00 28.00 31.00 37.00 |
6.50 6.50 6.50 6.50 6.50 |
| 45 48 54 60 |
TB100B1-45 TB100B1-48 TB100B1-54 TB100B1-60 |
3020 3020 3020 3020 |
18.626 19.821 22.212 24.601 |
17.919 19.112 21.498 23.884 |
3 3 3 3 |
2 2 2 2 |
51/4 51/4 51/4 51/4 |
B B B B |
46.00 53.00 62.00 72.00 |
6.50 6.50 6.50 6.50 |
120-1 Untuk 1 1/2 ''Pitch Rantai ANSI
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks.Bore | Diameter | Jenis | Berat (aplikasi) | |||
| OD | PD | L | dm2 | Hanya Pelek | Hanya Semak | |||||
| 12 13 14 15 16 |
TB120B1-12H TB120B1-13H TB120B1-14H TB120B1-15H TB120B1-16H |
2012 2517 2517 2517 3020 |
6.498 6.896 7.472 7.957 8.441 |
5.796 6.268 6.741 7.215 7.689 |
2 21/2 21/2 21/2 3 |
11/4 13/4 13/4 13/4 2 |
39/16 41/4 41/4 41/4 51/4 |
B1 B1 B1 B1 B1 |
5.50 6.00 7.00 8.00 10.00 |
1.70 3.50 3.50 3.50 6.50 |
| 17 18 19 20 21 |
TB120B1-17H TB120B1-18H TB120B1-19H TB120B1-20H TB120B1-21H |
3020 3020 3020 3020 3020 |
8.924 9.407 9.889 10.371 10.851 |
8.163 8.638 9.113 9.588 10.064 |
3 3 3 3 3 |
2 2 2 2 2 |
51/4 51/4 51/4 51/4 51/4 |
B1 B1 B1 B1 B1 |
11.00 12.00 14.00 15.50 17.50 |
6.50 6.50 6.50 6.50 6.50 |
| 24 26 30 35 45 |
TB120B1-24 jam TB120B1-26H TB120B1-30H TB120C1-35 TB120C1-45 |
3020 3020 3020 3020 3030 |
12.294 13.254 15.171 17.566 22.351 |
11.492 12.444 14.351 16.734 21.503 |
3 3 3 3 3 |
2 2 2 2 3 |
51/4 51/4 51/4 51/4 57/8 |
B1 B1 B1 C1 C1 |
23.50 28.50 33.50 52.00 82.00 |
6.50 6.50 6.50 6.50 6.50 |
| 60 70 80 |
TB120C1-60 TB120C1-70 TB120C1-80 |
3535 3535 3535 |
29.522 34.301 39.078 |
28.661 33.434 38.207 |
31/2 31/2 31/2 |
31/2 31/2 31/2 |
61/2 61/2 61/2 |
C1 C1 C1 |
140.00 175.00 220.00 |
14.00 14.00 14.00 |
Rentang Bor
| Busing | Rentang Bor |
| 2012 | 1/2-2" |
| 2517 | 1/2-21/2 |
| 3020 3030 | 7/8-3" |
| 3535 | 13/16-31/2 |
Kursi Kunci Standar
| Rentang Bor | kursi kunci | Rentang Bor | kursi kunci |
| 1/2-9/16 | 1/8x1/16 | 25/16-23/4 | 5/8x5/16 |
| 5/8-7/8 | 3/16x3/32 | 213/16-31/4 | 3/4x3/8 |
| 15/16-11/4 | 1/4x1/8 | 35/16-33/4 | 7/8x7/16 |
| 15/16-13/8 | 5/16x5/32 | ||
| 17/16-13/4 | 3/8x3/16 | ||
| 113/16-21/4 | 1/2x1/4 |
140-1 Untuk Rantai ANSI Pitch 13/4".
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Maks. Membosankan | Diameter Berat (APP) | |||||
| O.D. | PD. | L | dm2 | Jenis | Hanya Pelek | Hanya Semak | ||||
| 12 13 14 15 16 |
TB140B1-12H TB140B1-13H TB140B1-14H TB140B1-15H TB140B1-16H |
2517 3020 3020 3020 3020 |
7.581 8.150 8.718 9.283 9.848 |
6.762 7.313 7.864 8.417 8.970 |
21/2 3 3 3 3 |
13/4 2 2 2 2 |
41/4 51/4 51/4 51/4 51/4 |
B1 B1 B1 B1 B1 |
7.00 8.00 10.00 12.00 14.00 |
3.50 6.50 6.50 6.50 6.50 |
| 17 18 19 21 26 |
TB140B1-17H TB140B1-18H TB140B1-19H TB140B1-21H TB140B1-26 |
3020 3020 3020 3020 3020 |
10.411 10.975 11.537 12.660 15.463 |
9.524 10.078 10.632 11.742 14.518 |
3 3 3 3 3 |
2 2 2 2 2 |
51/4 51/4 51/4 51/4 51/4 |
B1 B1 B1 B1 B1 |
16.00 18.00 20.00 24.00 40.00 |
6.50 6.50 6.50 6.50 6.50 |
| 35 45 60 70 |
TB140C1-35 TB140C1-45 TB140C1-60 TB140C1-70 |
3535 4040 4040 4040 |
20.494 26.076 34.442 40.017 |
19.523 25.087 33.438 39.006 |
3 1/2 4 4 4 |
31/2 4 4 4 |
61/2 73/4 73/4 73/4 |
C1 C1 C1 C1 |
78.00 118.00 188.00 241.00 |
14.0 22.0 22.0 22.0 |
160-1 Untuk Rantai ANSI Pitch 2".
| Nomor Gigi. | Nomor Katalog. | nomor busing. | Diameter | Diameter Berat (APP) Maks. | ||||||
| O.D. | PD. | Membosankan | L | dm2 | Jenis | Hanya Pelek | Hanya Semak | |||
| 11 12 13 14 15 |
TB160B1-11H TB160B1-12H TB160B1-13H TB160B1-14H TB160B1-15H |
2517 3020 3020 3020 3535 |
8.011 8.664 9.314 9.963 10.609 |
7.099 7.727 8.357 8.988 9.620 |
2 1/2 3 3 3 3 1/2 |
1 3/4 2 2 2 3 1/2 |
4 1/4 5 1/4 5 1/4 5 1/4 6 1/2 |
B1 B1 B1 B1 B1 |
9.00 11.00 13.00 16.00 25.00 |
3.50 6.50 6.50 6.50 14.00 |
| 16 17 18 19 21 |
TB160B1-16H TB160B1-17H TB160B1-18H TB160B1-19H TB160B1-21H |
3535 3535 3535 3535 3535 |
11.255 11.899 12.543 13.185 14.470 |
10.252 10.885 11.518 12.151 13.419 |
31/2 31/2 31/2 31/2 31/2 |
31/2 31/2 31/2 31/2 31/2 |
61/2 61/2 61/2 61/2 61/2 |
B1 B1 B1 B1 B1 |
28.00 32.00 35.00 39.00 48.00 |
14.00 14.00 14.00 14.00 14.00 |
| 26 35 45 60 |
TB160B1-26 TB160C1-35 TB160C1-45 TB160C1-60 |
3535 4040 4040 4545 |
17.671 23.422 29.802 39.362 |
16.593 22.312 28.671 38.215 |
31/2 4 4 41/2 |
31/2 4 4 41/2 |
61/2 73/4 73/4 83/4 |
B1 C1 C1 C1 |
38.00 118.00 186.00 292.00 |
14.00 22.00 22.00 30.00 |
Tag populer: sproket btl, produsen, pemasok, pabrik sproket btl Cina, Sproket Besi Cor BTL, roda gigi, Sproket STL Double Pitch, Sproket Lubang Standar Pitch Ganda, Sproket Ganda Tunggal Lubang Stok, Sproket Lubang Standar
